V&B No 560 Block Plane

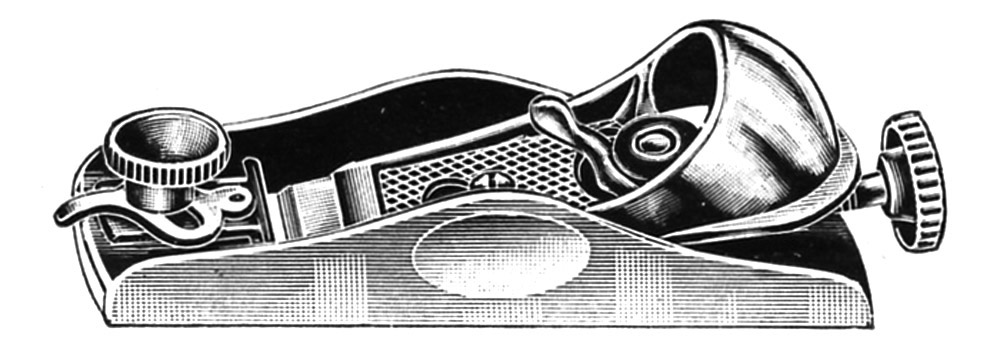

as illustrated in the Vaughan And Bushnell Tools catalogue No. 23 (1923).
Block Planes
LOW ANGLE ADJUSTABLE THROAT
NICKEL TRIMMED
Refer to the Series 500 Block Planes for a general description of this line.
Specifications:
| Plane Type: | Block Plane |
| Features: | Adjustable, with screw adjustment for cutter. Adjustable throat. Low angle |
| Manufactured: | From 1923 to c1935 |
| Length: | 6 inches |
| Cutter Width: | 1⅜ inches |
| Construction: | Cast iron body, with brass knob |
| Finish: | Japanned, with Nickel trimmings |
| Price (1923): | $2.85 |
| (1927): | $2.85 |
| Uses: | General purpose block plane |
Please check the Value Guide For V&B Planes page for relative prices.
Additional Notes:
